Ceiling Loudspeakers
AMT 305
#50AMT305
Ceiling loudspeaker. Open cabinet. 20W @ 8 Ohm. 20/15/7.5 W @ L100V. Woofer 5.25'' + Tweeter 1''.

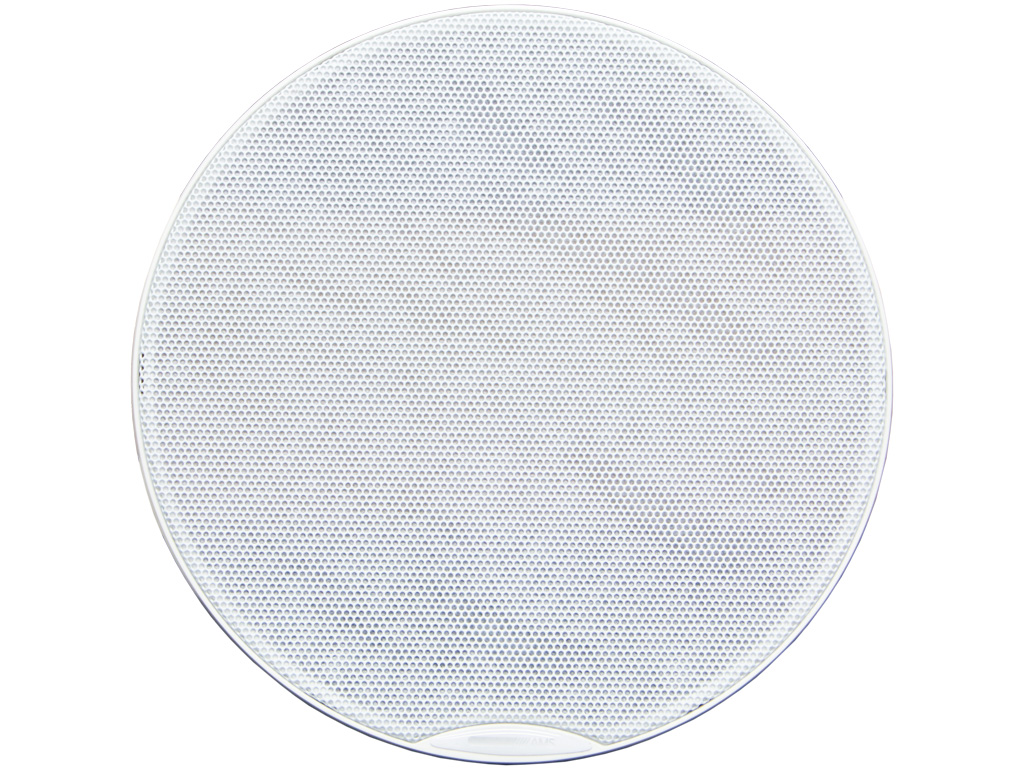

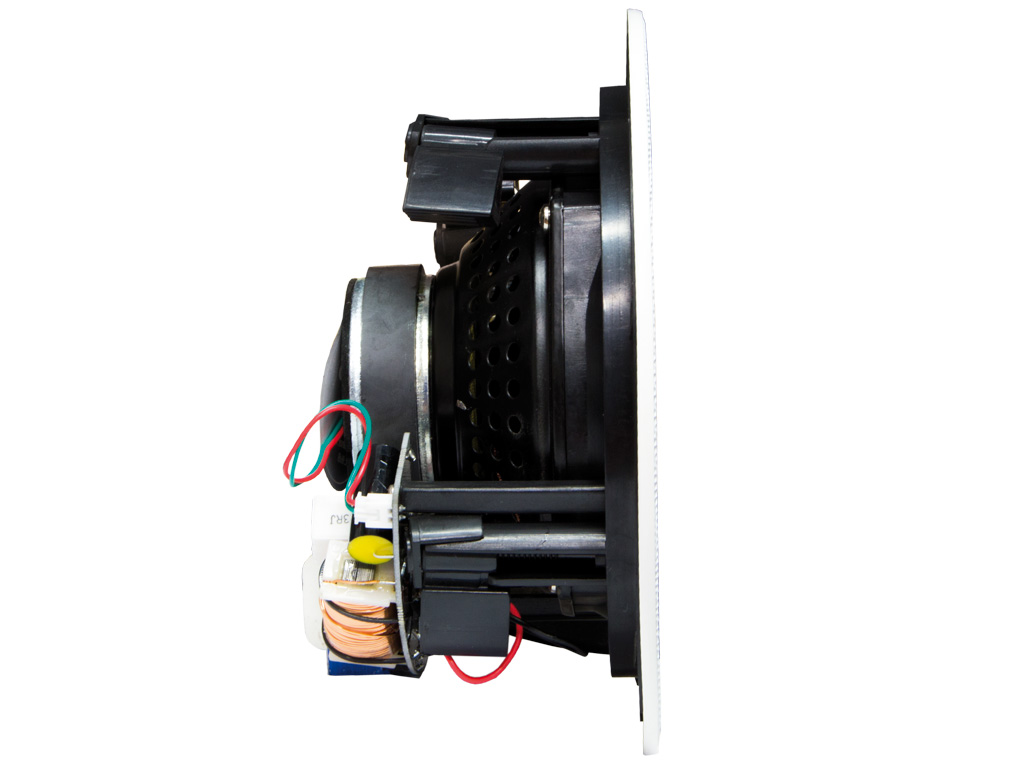

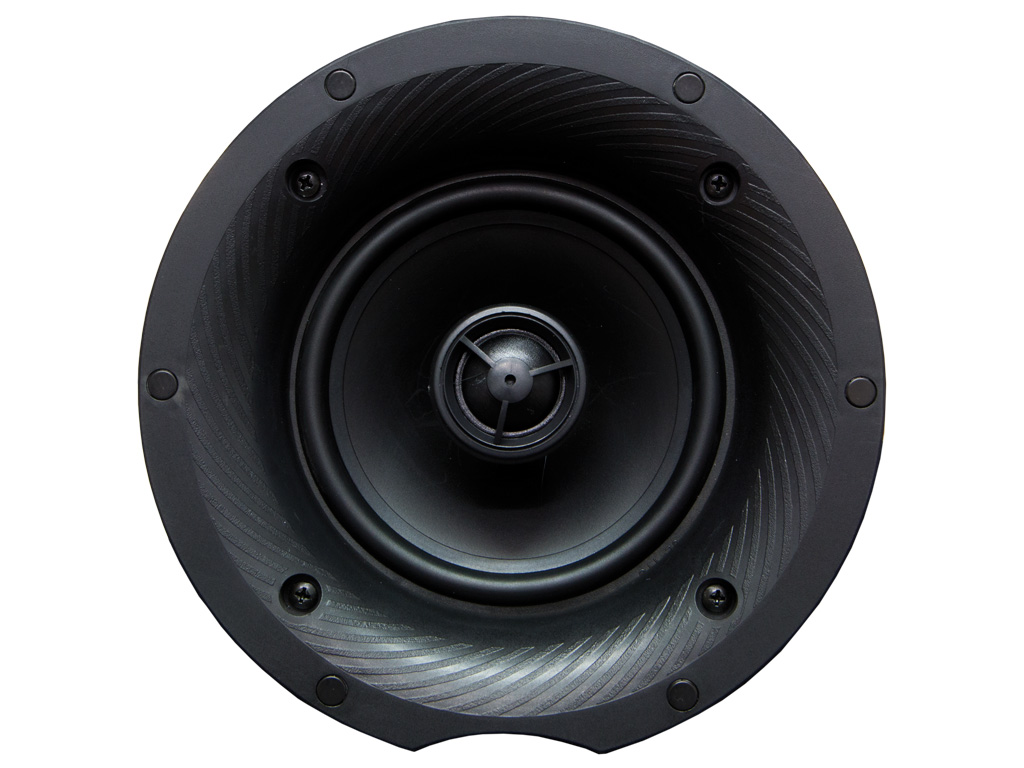

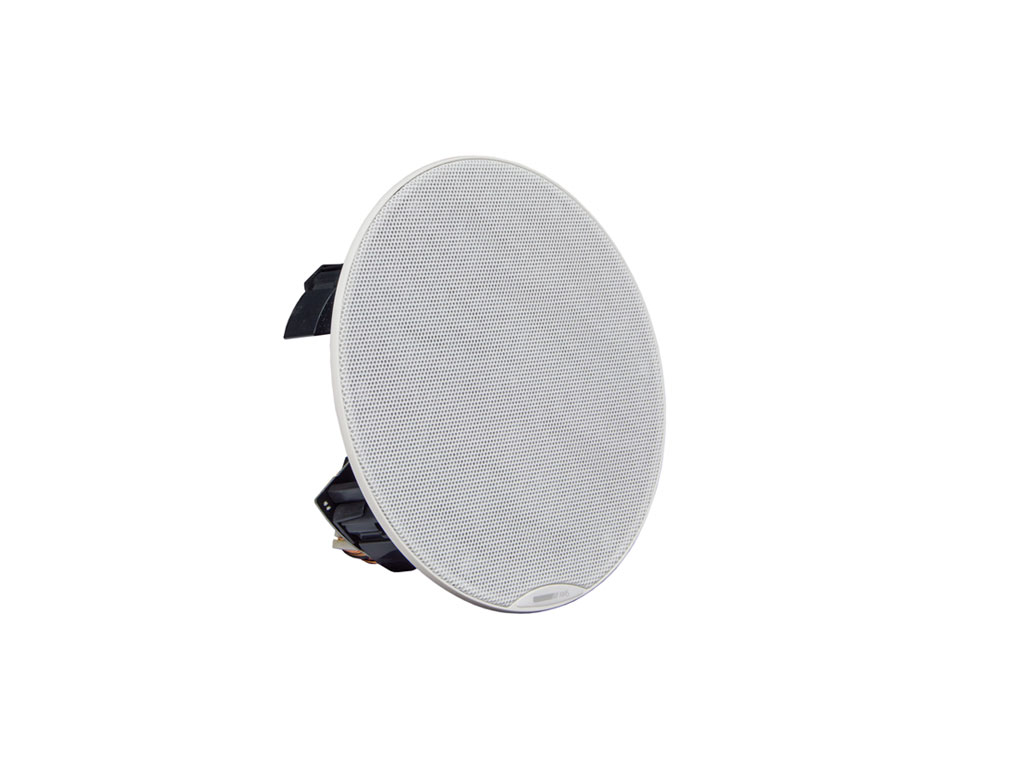

AMT 305 is a ceiling loudspeaker for 100V line installation, it has 3 selectable power ratings (20/15/7.5W) and provides 20W @ 8 Ohm. ABS plastic housing and metal grille. It incorporates a 5.25" Woofer + 1" Driver. Designed for commercial audio applications, obtaining a high performance in speech intelligibility and musical clarity. Its power selector, makes it adaptable to high impedance installations (with several positions), and low impedance. The loudspeaker body is made of ABS plastic and its metallic grille, fixed with magnets, covers the whole loudspeaker.
Translated with DeepL
Main information
- Open enclosure.
- 20W @ 8 Ohm.
- 20/15/7.5 W @ L100V.
- Woofer 5.25 inch + Tweeter 1 inch.
Product main measures (m)
0.20 x
0.20 x
0.08
| Type | 2 vías. Pasivo/ 2-way. Passive |
| Low Impedance Power | 20 W @ 8 Ohm |
| L100V Power | 20/15/7.5 W @ L100V |
| LF Transducer | 5.25" woofer |
| HF Transducer | 1" tweeter |
| Frequency Range | 100 Hz - 20 KHz |
| Max SPL | 86 dB |
| Mounting diameter | 180 mm |
| Mounting depth | 73 mm |
| Material | Housing: ABS plastic; Grille: metal |
| Colour | White |
| Dimensions | 200 x 77 mm |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.20 | 0.20 | 0.08 | 0.10 |
| Box | 0.23 | 0.23 | 0.12 | 1.40 |
| Master Carton | 0.47 | 0.47 | 0.24 | 12.00 |
