Microphones
ATI 105
#MIC05105
UHF-FM audio transmitter/receiver system. For guitar/electric bass. UHF. Lithium battery.

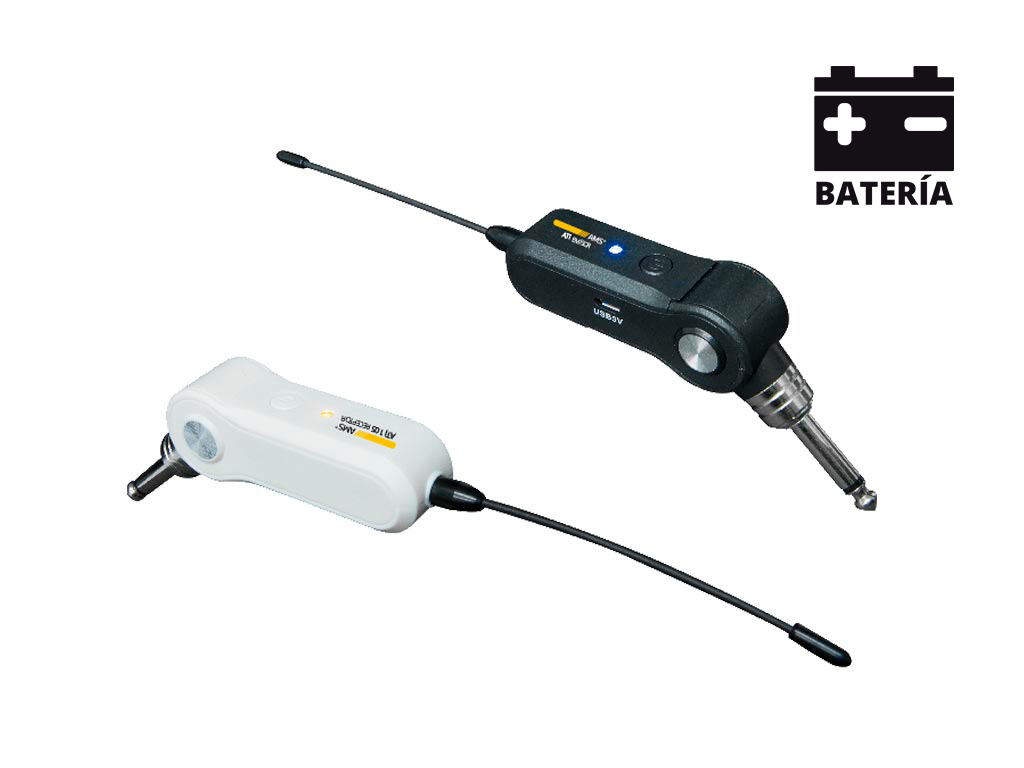

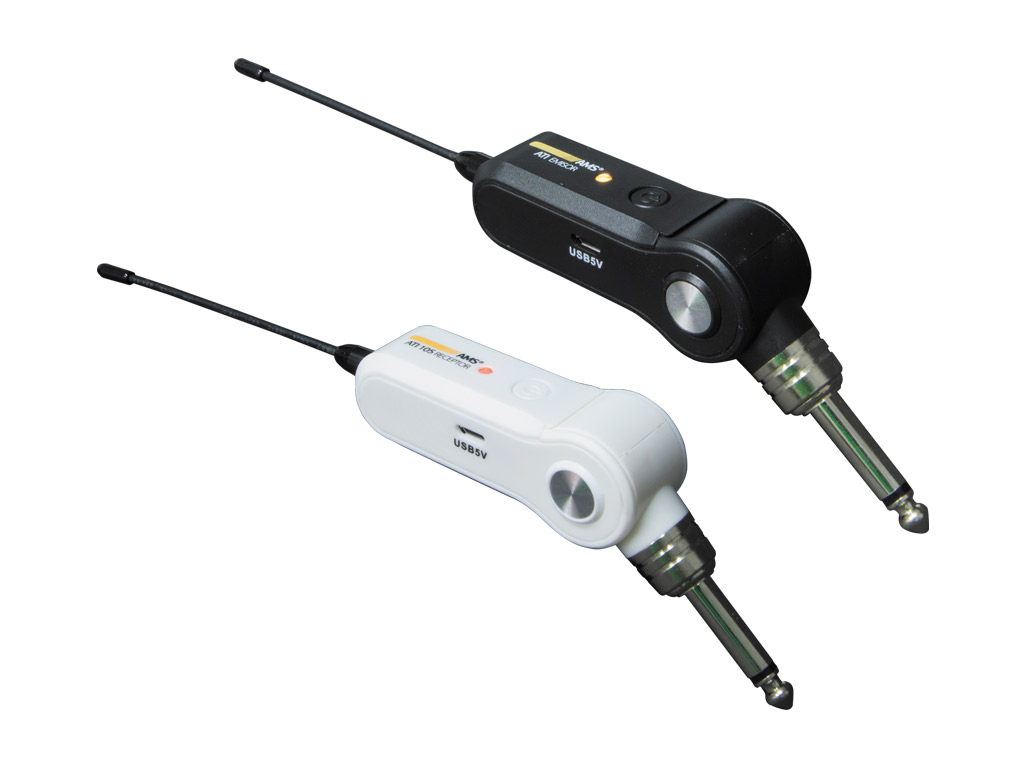

ATI 105 is a wireless audio transmitter system which consists of two elements, including transmitter and receiver and using UHF band and FM modulation. The signal is high quality transmitted without compression or distortion.
ATI 105 is suitable for guitar, bass and all instruments with jack ¼''. It incorporates 5 different transmission channels easily selected and paired with the colour of the LED.
Main information
- Suitable for instruments (guitar, bass, etc.).
- Mono ¼ inch jack. 60º rotatable.
- Integrated lithium batteries in both elements.
- Micro USB port for recharging (cable included).
Measures (Box) (m)
0.14 x 0.11 x 0.03
| Frecuency Band | UHF. 863.7 / 866.7 / 869.7 / 872.7 / 875.7 MHz |
| Frequency Response | 40Hz - 18 kHz ±3 dB / 40Hz - 18 kHz ±3 dB |
| Sensitivity | < -110 dBm |
| S/N ratio | <-85 dB |
| THD | <0,5% |
| Emtting power | >10 dBm |
| Power supply | Rechargeable Li batteries |
| Latency | 1 ms |
| Connector | ¼" mono jack. 60° rotatable |
| Operating distance | > 20 metres without obstacles |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Box | 0.14 | 0.11 | 0.03 | 0.20 |
| Master Carton | 0.34 | 0.58 | 0.32 | 16.00 |
