Static Lighting
BAT 54
#EFE02054

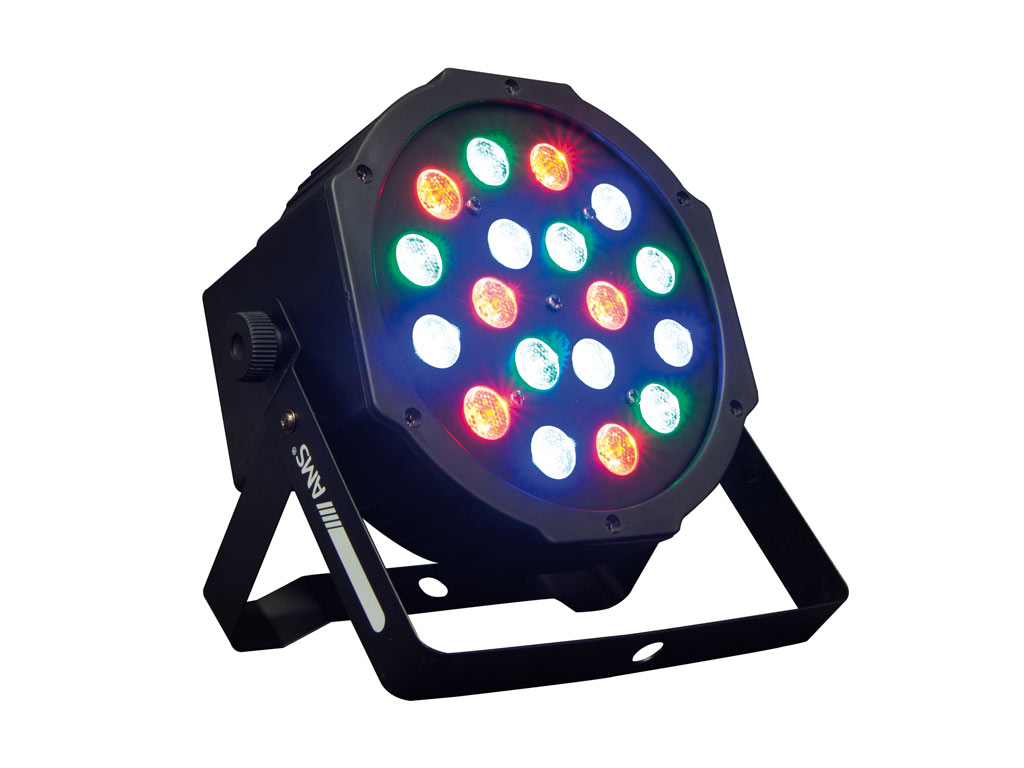

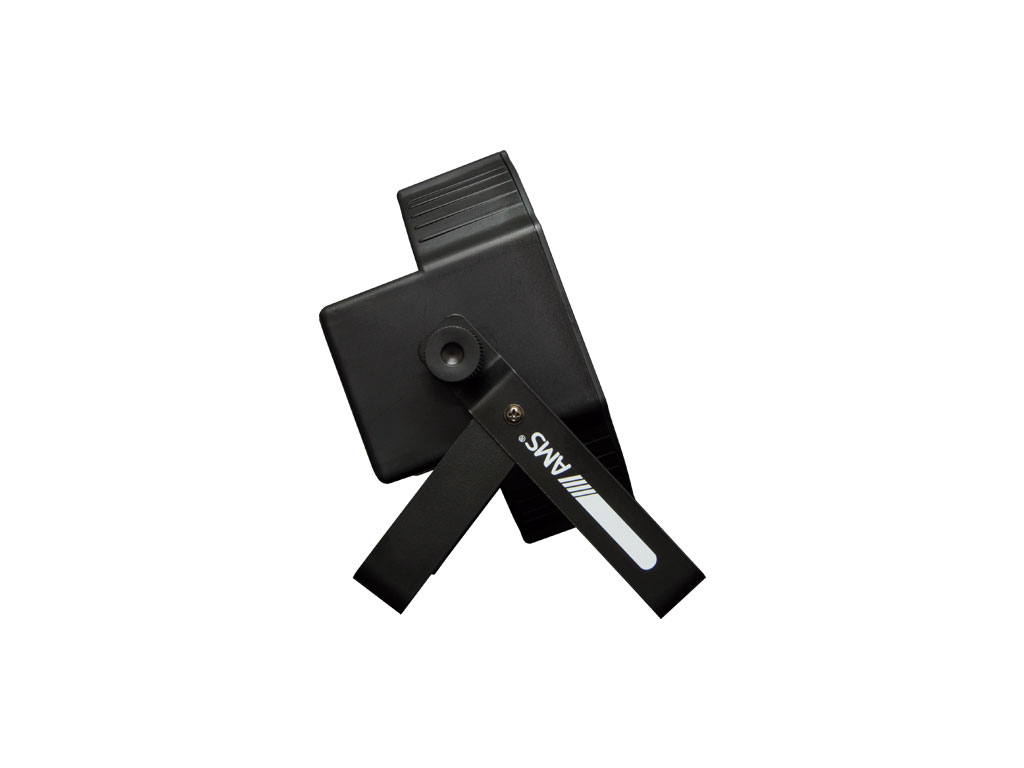

Lightning Projector. 20 W. 18 LED RGB 1 W. 4/7 DMX channels. Aperture 25º.
LED projector consisting of 18 1W LEDs, divided between the primary colours RGB and white. Its reduced dimensions and power make it suitable for indoor installations, replacing conventional spotlights and providing brilliant lighting and enormous possibilities of different effects. It integrates various operating modes: DMX, with 4/7 channel modes and different functions to control. The inclusion of a microphone allows you to run these programs through the audio captured by this microphone.
Main information
- 18 x 1 W LEDs (6R+ 6G+6B).
- 7 DMX channels.
- Beam angle 25º.
- Double U-bracket.
Product main measures (m)
0.16 x
0.25 x
0.25
| Light engine | 18 LED RGB de 1W/ 18 1W RGB LEDs |
| Power | 20 W |
| Beam angle | 25º |
| DMX channels | 5/7 canales DMX/ 5/7 DMX channels |
| Operating modes | DMX, Auto, Master/Slave, Audio |
| Controls | 4 botones para navegación por menús de configuración/ 4 buttons for configuration menu navigation |
| Indicators | 4-digit display |
| Connections | XLR3 IN/OUT |
| Colour | Black |
| Rigging | Double U-bracket handle |
| Battery | No battery |
| Power supply | AC 110-220V |
| Dimensions | 160 x 250 x 250 mm |
| Weight | 700 g |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.16 | 0.25 | 0.25 | 0.70 |
| Box | 0.14 | 0.20 | 0.20 | 0.98 |
| Master Carton | 0.41 | 0.41 | 0.43 | 12.62 |
