Microphones
MU 155 LV M
#MIC03155
Wireless system for UHF. 2 channels. 1 bodypack +1 lavalier microphone + 1 handheld microphone.

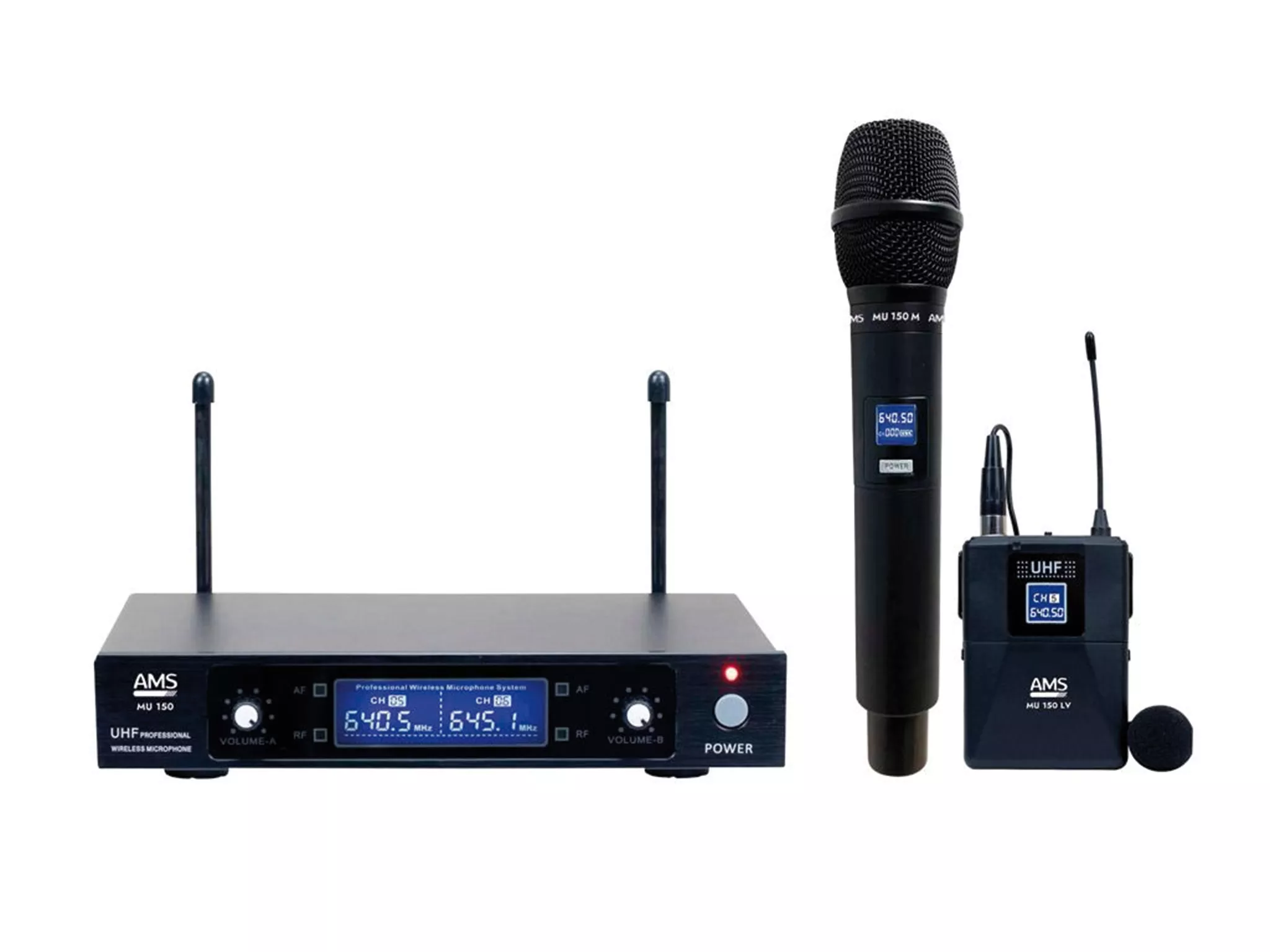

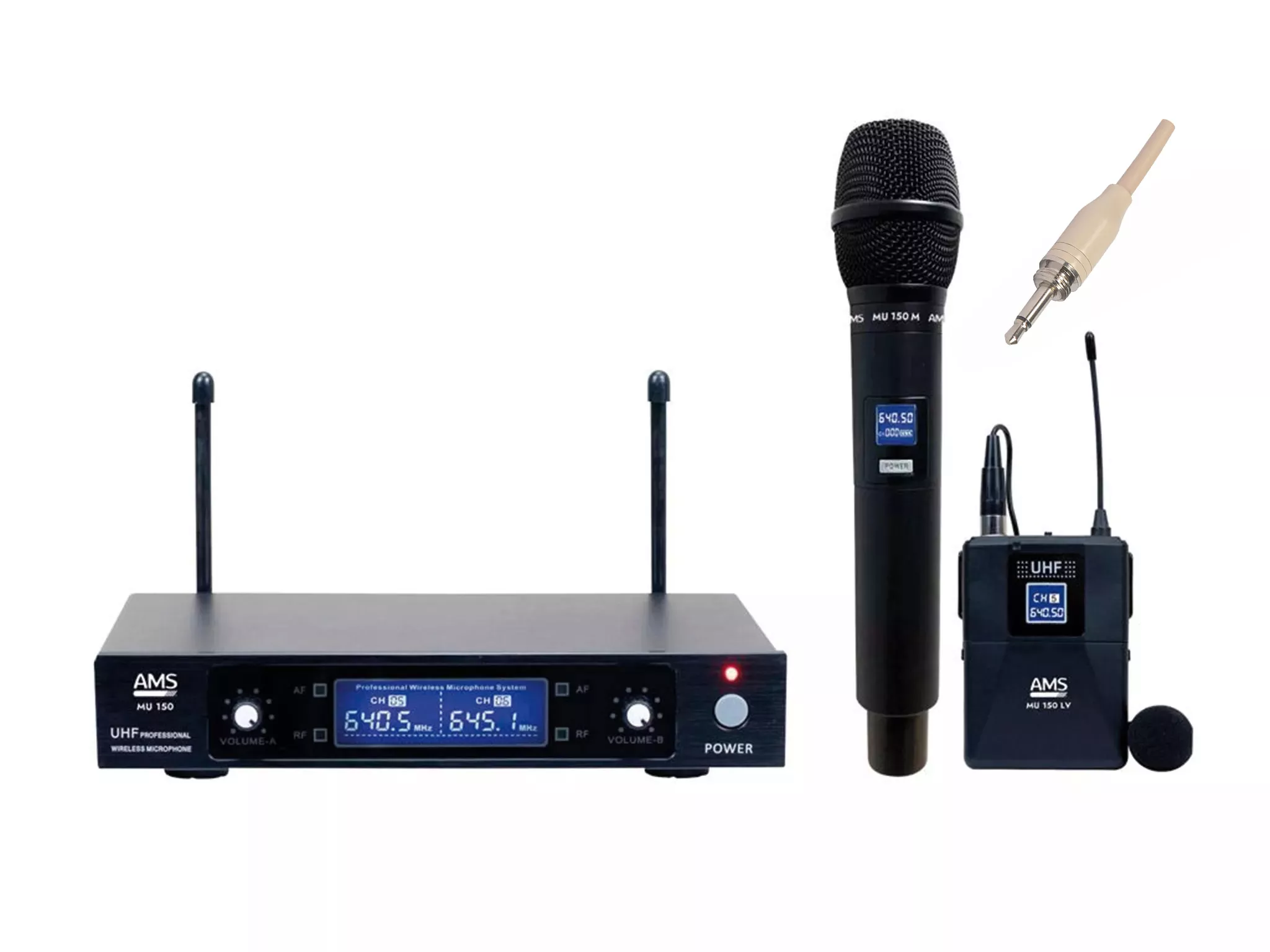

MU 155 LV M is a wireless system for the UHF band. It consists of 2 non-diversity channels. It incorporates 1 handheld microphone, 1 lavalier microphone and 1 bodypack with informative LCD display. It has independent volume and display showing AF, RF and frequency levels. Each channel has a balanced output and a mixed output of both channels.
Main information
- Wireless system for UHF band.
- 2 non-Diversity channels.
- Volume and independent output.
- Display with level and frequency information.
Measures (Box) (m)
0.34 x 0.46 x 0.54
| Frecuency Band | UHF 650-800 MHz |
| Dynamic Range | >100 dB |
| Frequency Response | 40 Hz - 16 kHz ±2 dB |
| Receive sensitivity | 5 dBuV |
| S/N ratio | >100 dB |
| Connections | Unbalanced: 1 x Jack 6.3mm; Balanced: 1 x XLR3 |
| Power supply | DC 10 V - 15 V 500 mA input |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Box | 0.34 | 0.46 | 0.54 | 13.00 |
| Master Carton | 0.32 | 0.44 | 0.10 | 2.00 |
