Microphones
MU 325 LV M
#MIC03325

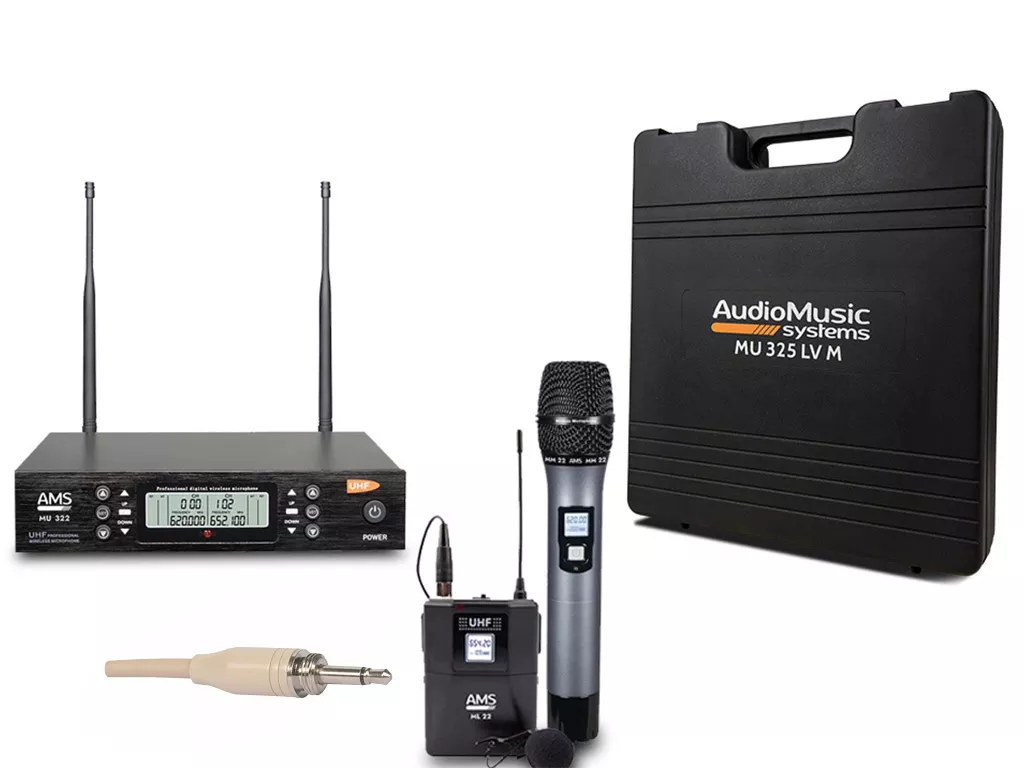

Wireless system for UHF. 200 channels. 1 bodypack + 1 lavalier microphone + 1 handheld microphone

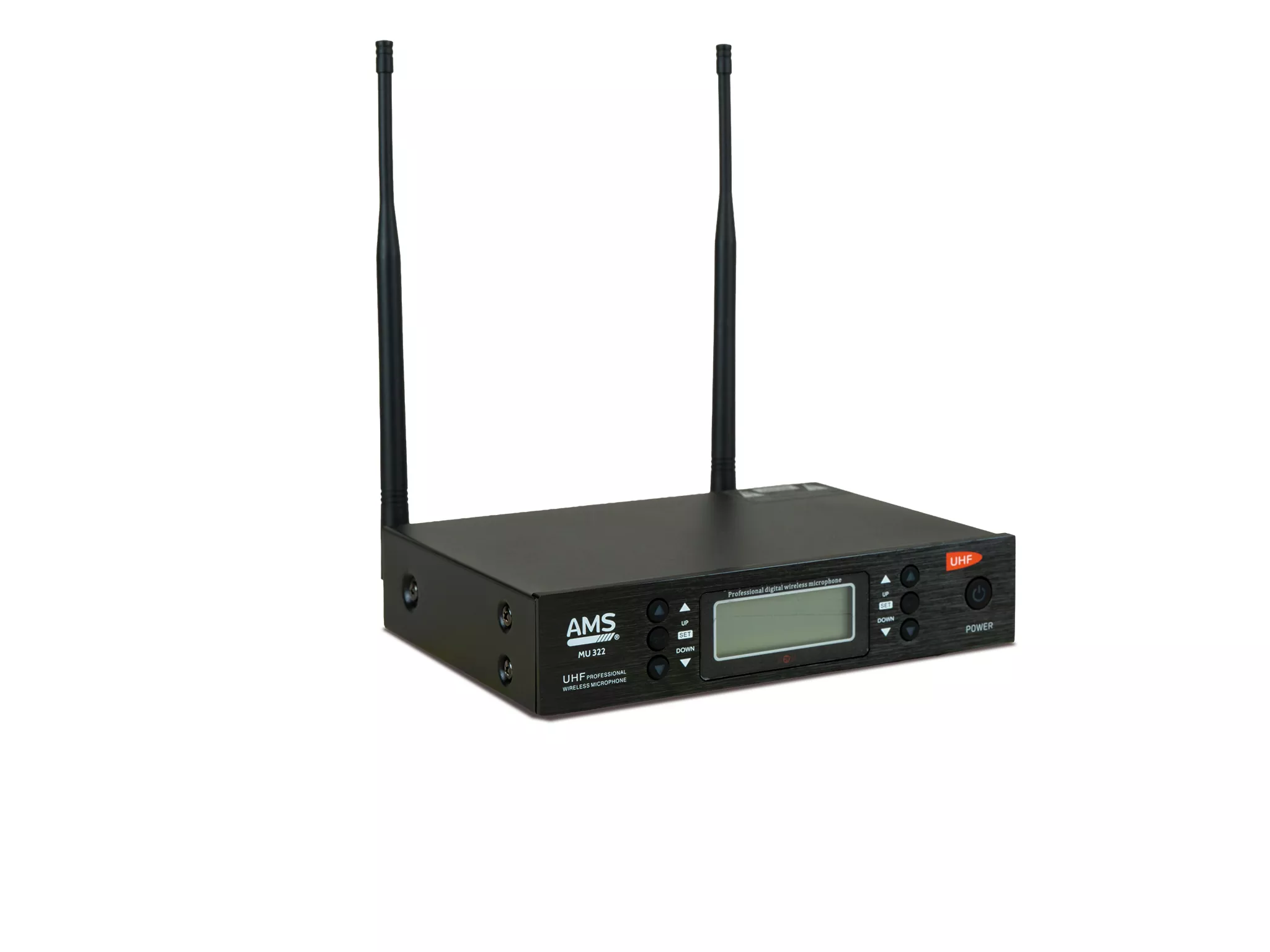

MU 322 LV M is a wireless system for the UHF band. It has 200 channels and its synchronization is fast and intuitive, simply by bringing the flask close to the receiver. It incorporates 1 handheld microphone, 1 lavalier microphone and 1 bodypack with an informative LCD display. It has independent volume and display showing AF, RF, channel and transmit frequency levels. Each channel has a balanced output and a mixed output of both channels. Microphone connector Minijack male screw.
Main information
- 200-channel UHF wireless system
- Sync through IR
- Incorporates 1 handheld microphone, 1 lavalier microphone and 1 bodypacks
- Independent volume and output. Display with level and frequency information
Measures (Box) (m)
0.41 x 0.36 x 0.46
| Frecuency Band | UHF 620-681 MHz |
| Bandwidth | 25 kHz |
| Frequency | 200 frecuencias disponibles/ 200 frecuencies available |
| S/N ratio | >105 dB |
| Connections | Unbalanced: Jack 6.3 mm; Balanced: XLR3 |
| Power supply | DC 11-16 V (rated 12V) 500mA input |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Box | 0.41 | 0.36 | 0.46 | 14.50 |
| Master Carton | 0.39 | 0.34 | 0.09 | 3.00 |
