Microphones
MU 345 + MM 45
#MIC50345
Single-channel Diversity wireless system with handheld microphone. 44 channels

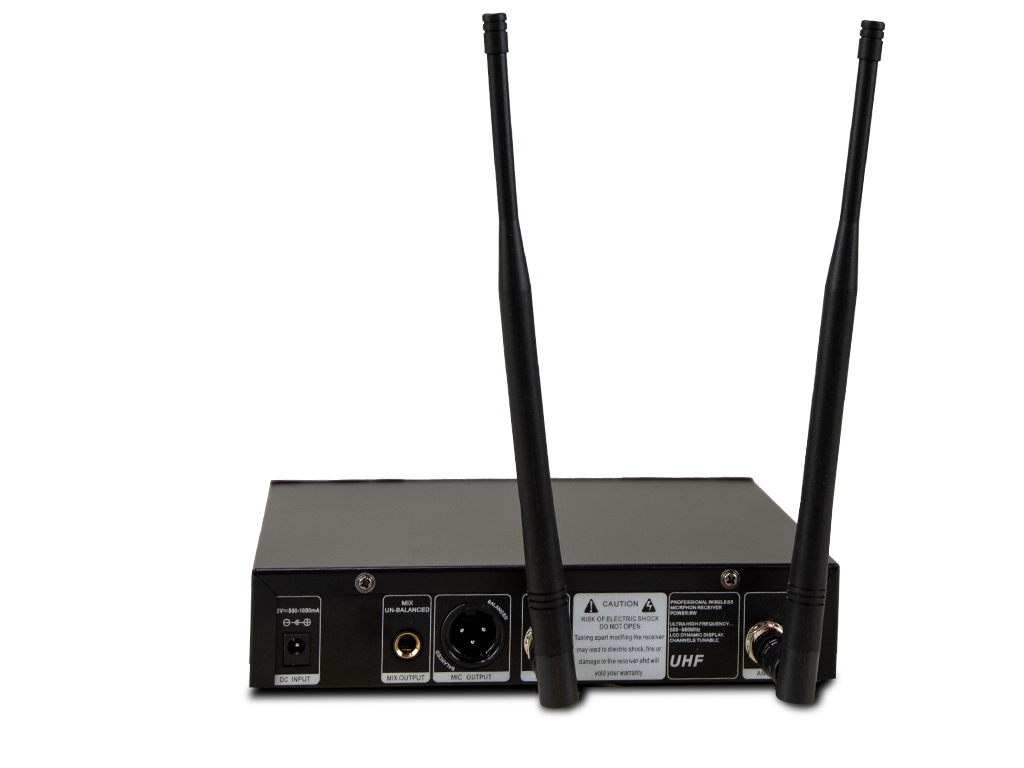

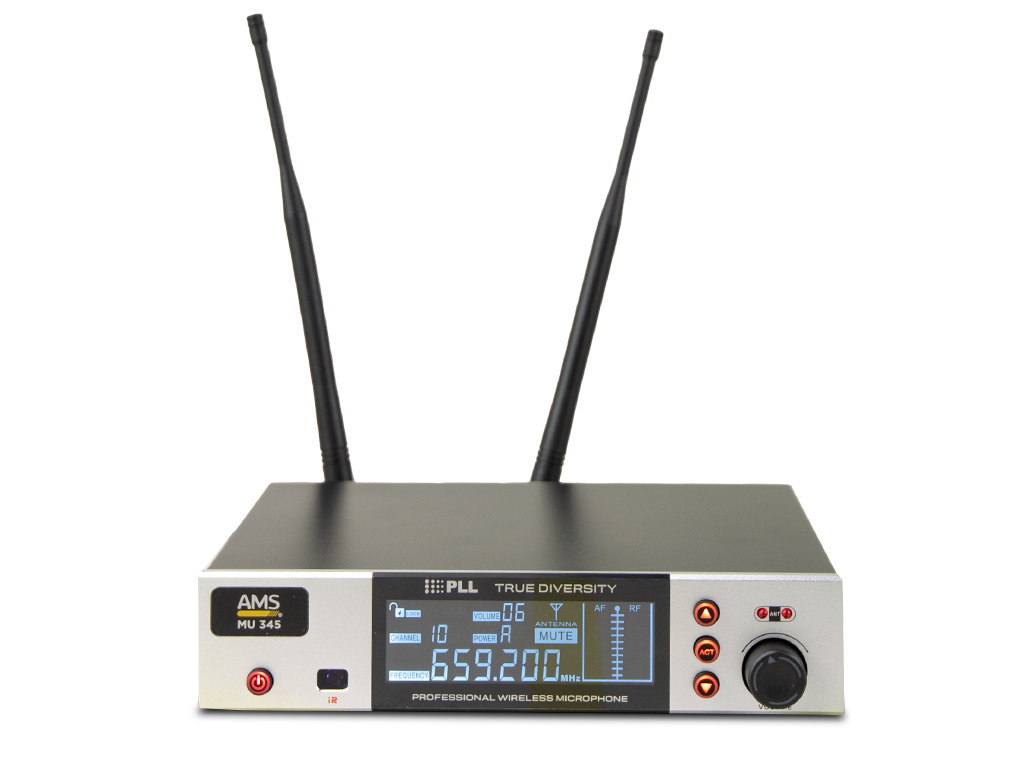

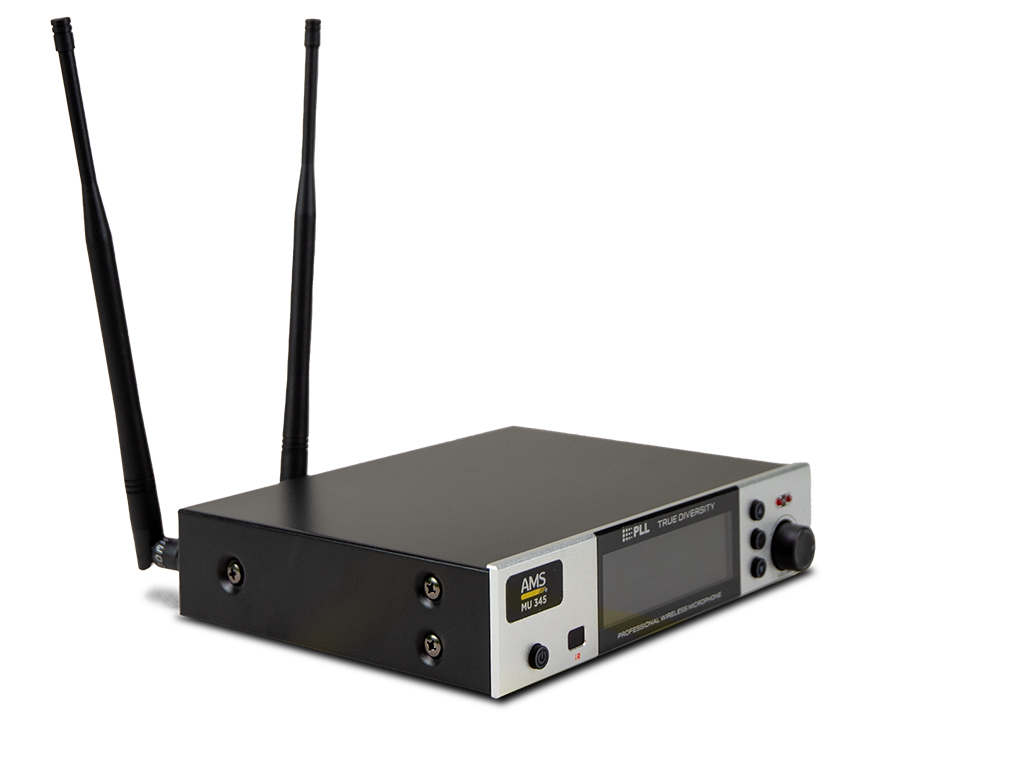

MU 345 is a single-channel Diversity wireless system incorporating a handheld microphone. Its range goes from 656 MHz to 675 MHz, with 44 channels in total. Synchronization between the microphone and receiver is done by IR, by selecting the desired frequency on the receiver, pressing the scan button and bringing the microphone to be synchronized closer. The large format displays show all the necessary information: frequency, channel, receiving antenna, battery level, AF and RF level. Balanced (XLR3) and unbalanced (1/4" jack) outputs are available. The receiver is powered by the external transformer and the microphone by 2 AA batteries.
Main information
- Single-channel UHF Diversity wireless system
- Sync by IR
- 44 channels. Handheld microphone
- Large format display
| Frecuency Band | UHF 656 MHz - 675 MHz |
| Bandwidth | 25 MHz |
| Frequency Response | 100 Hz - 10 kHz |
| S/N ratio | > 85 dB |
| THD | <0.5% |
| Dynamic Range | > 105 dB |
| Audio Output | 300mV/ 300 mV |
| Microphone capsule | Dynamic |
| Polar pattern | Cardoid |
| Continuous use | 10-12 horas/ 10-12 hours |
| Power supply | DC 12v 1000mA / 2x AA type 1.5V |
| Dimensions | 210 x 170 x 44 mm |
